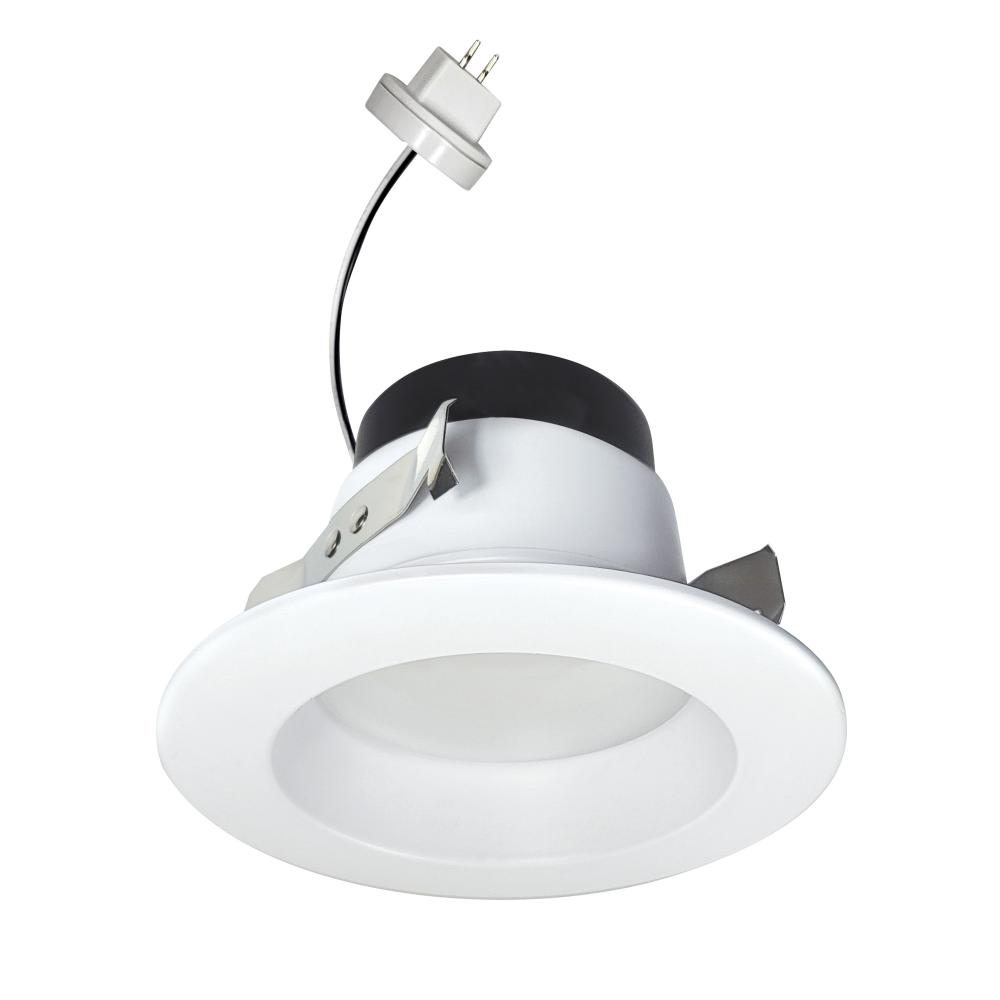

4" Onyx 12Vac Retrofit Reflector, 800lm / 11W, Selectable CCT, White Finish (NOXLV-4R1TWWW)
4" Onyx Low Voltage Retrofit luminaires are perfect solution to convert low voltage recessed housings into LED luminaire. Each fixture include an integral tunable CCT switch to change the color temperature appearance. Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" low voltage housings. Deep regressed optics and round aperture deliver even and glare-free illumination.Input Voltage: 12V
Lumens / Wattage: 800lm / 11W
CCT / CRI: Selectable CCT / 90 CRI
Finish: White
Dimming: Triac or ELV
Optics: 95° Wide Flood
Listing: cETLus classified for Wet Locations
Downloads
Product Specification
Item #
NOXLV-4R1TWWW
Dimensions
Height: 3.25"
Width: 5.13"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Option
Title 24
Wattage
12w
Category
Recessed
Product Line
LE49
Est. Shipping Wt.
1
Length
5.125
Lumens / Light Output
800lm
Ship Carton Height
5.375
Ship Carton Length
5.5
Ship Carton Width
3.5
Weight
.3
CCT
Selectable CCT (27K / 30K / 35K / 40K / 50K)
CEC Database
Y
CEC Item Number
NOXLV-4**TW**
CEC Substitute Item
NOXLV-4R2TWWW
Contains Battery
N
Country of Origin
CHN
CRI
90
DLC Listed
No
Master Box H
12
Master Box L
12
Master Box Qty
12
Master Box W
12
Master Box Wt.
6
Product Family
Onyx
Safety Listing
cETLus
Wattage
11W
Other Details:
- .4
Finish
Additional options that would change other selections
Call for Price
BASE PRICE:
$
31
50
/
/ 1
($31.50 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 2 items available.
