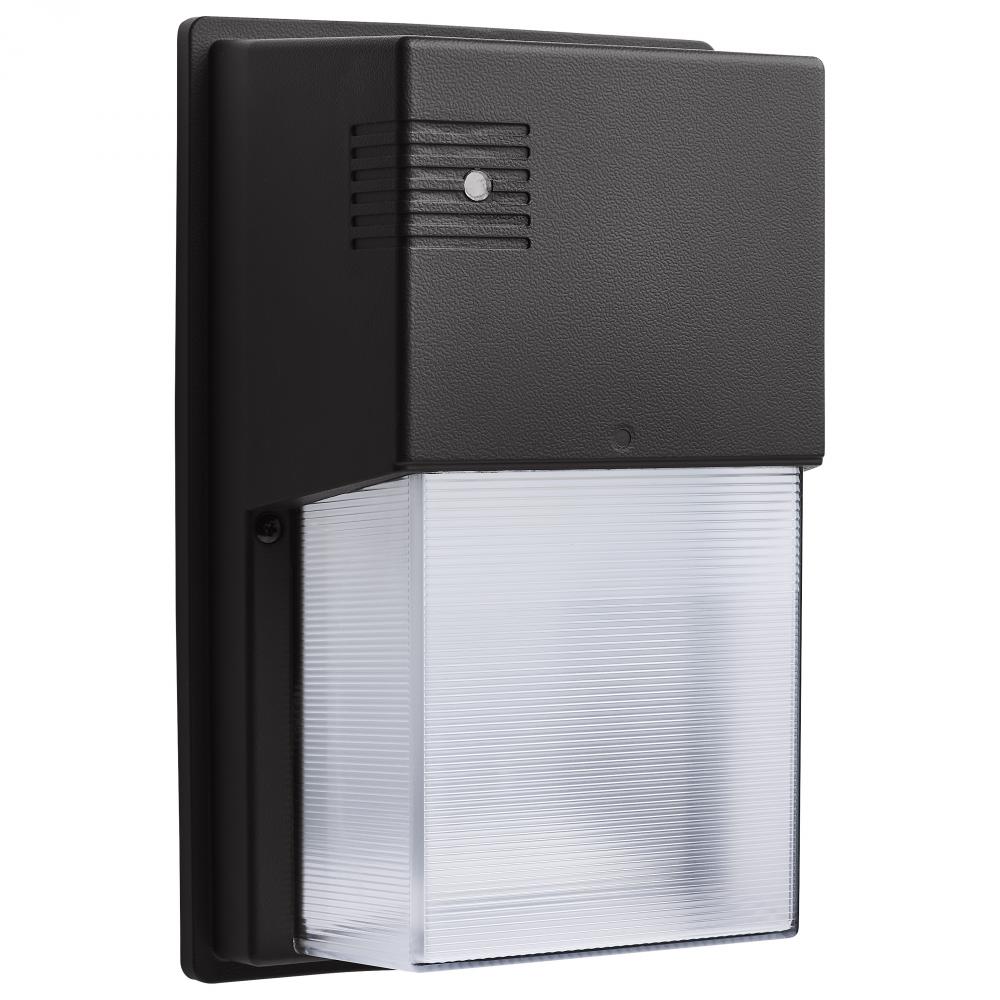

LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; Bronze Finish (65/986)
LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; Bronze Finish
Product Specification
Item #
65/986
Dimensions
Height: 10.96"
Width: 6.86"
Additional product details
Category
Exterior
Subcategory
Wall Lights
Option
LED
, Prop 65
Category
Wall Pack
Sub Category
Standard
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Soft White to Natural Light
Dimmable
Yes-Dimmable
Each Height
5
Each Length
7.5
Each Width
11.5
Lumens
1410L-2839L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.083-0.029/0.125-0.043/0.167-0.058A
ANSI Base
Integrated
Beam Angle
100
B_U_G_Rating
B1-U3-G1
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80+
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
0.2496
Each Quantity
1
Efficacy
141.00/141.63/141.95 LPW
FCC Compliant
Yes
Feature 1
CCT and Wattage Selectable
Feature 2
Bronze Die-Cast Aluminum
Feature 3
0-10V dimming
Feature 4
IP65 and IK08 Vandal Resistant
Feature 5
Wet location rated
Feature 6
B1-U3-G3 Rating
Feature 7
50,000 Hour Functional Life
Feature 8
5 Year Warranty
Finish Family
Bronze
Flicker Free
No
Flr Equiv
42W
HID Equiv
100W
Impact Rating (IK)
IK08
Incandescent Equivalent
150W
Indoor Outdoor
Outdoor
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Prismatic
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's 65-986 bronze LED entryway wall pack offers a sleek and versatile solution for outdoor lighting. Designed with a durable die-cast aluminum construction and an IK08 polycarbonate lens, this fixture ensures reliable performance in demanding
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Order In Multiples Of
1
Pack Type
Box
Photocell
Has Photocell
Power Factor
>0.9
Quantity In Pack
1
R9 Value
11
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Elevate the lighting of your entryways with SATCO NUVO's premium LED wall packs that combine durability, versatility, and style. Featuring an integrated by passable photocell, these fixtures are crafted with robust die-cast aluminum construction and a
Safety Listing
cULus
SDS class
LED_Fixture
Short Description
LED ENTRYWAY WALL PACK
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Weight Lb.
2.64
Finish
