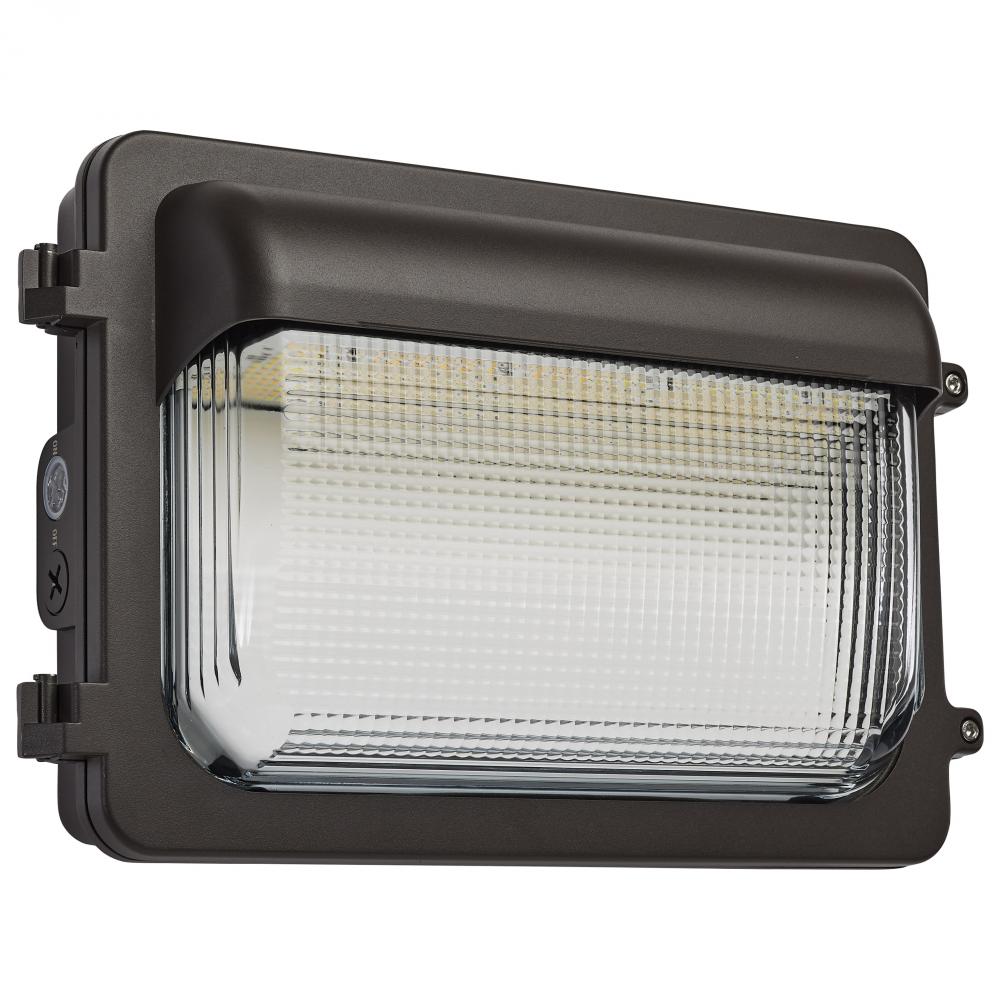

LED Low Profile Wall Pack; Wattage 70/85/100W and CCT 3K/4K/5K Selectable; Photocell; Dimmable; (65/885)
LED Low Profile Wall Pack; Wattage 70/85/100W and CCT 3K/4K/5K Selectable; Photocell; Dimmable; Bronze Finish
Product Specification
Item #
65/885
Dimensions
Height: 9.76"
Width: 15.55"
Additional product details
Category
Exterior
Subcategory
Wall Lights
Option
LED
, Prop 65
Category
Wall Pack
Sub Category
Standard
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Soft White to Natural Light
Dimmable
Yes-Dimmable
Each Height
5.25
Each Length
17.5
Each Width
5.25
Lumens
8817L-12941L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.583-0.253/0.708-0.307/0.833-0.361A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
B_U_G_Rating
B1-U3-G5
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Thailand
CRI
80+
Depth
4.21
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
0.2791
Each Quantity
1
Efficacy
125.96/127.99/129.41 LPW
FCC Compliant
Yes
Feature 1
Low Profile Extends less than 4.25 inches
Feature 2
Integrated Bypassable Photocell
Feature 3
IK08 Vandal Resistant Glass Lens
Feature 4
Wet Location
Feature 5
0-10V Dimmable Down to 10 percent
Feature 6
IP65 Rated
Feature 7
DLC Premium
Feature 8
Bronze Finish
Finish Family
Bronze
Fixture shape
Trapezoid
Has Driver
Yes
HID Equiv
175W/265W/350W
Impact Rating (IK)
IK08
Incandescent Equivalent
550W
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Borosilicate Glass
Long Description
SATCO NUVO's 65-885 LED Low Profile Wall Pack is a versatile fixture that offers field-selectable settings (70-Watt/85-Watt/100-Watt) with 3 CCT options (3000K, 4000K, 5000K), allowing you to tailor the lighting to your needs. Its sleek and durable des
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Order In Multiples Of
1
Pack Type
Brown Box
Photocell
Has Photocell
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's LED Low Profile Wall Pack is a versatile fixture that offers field-selectable settings, allowing you to tailor the lighting to your needs. Its sleek and durable design, featuring an IK08 vandal resistant glass lens and integrated bypassabl
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
LED LOW PROFILE WALL PACK
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Weight Lb.
9.26
