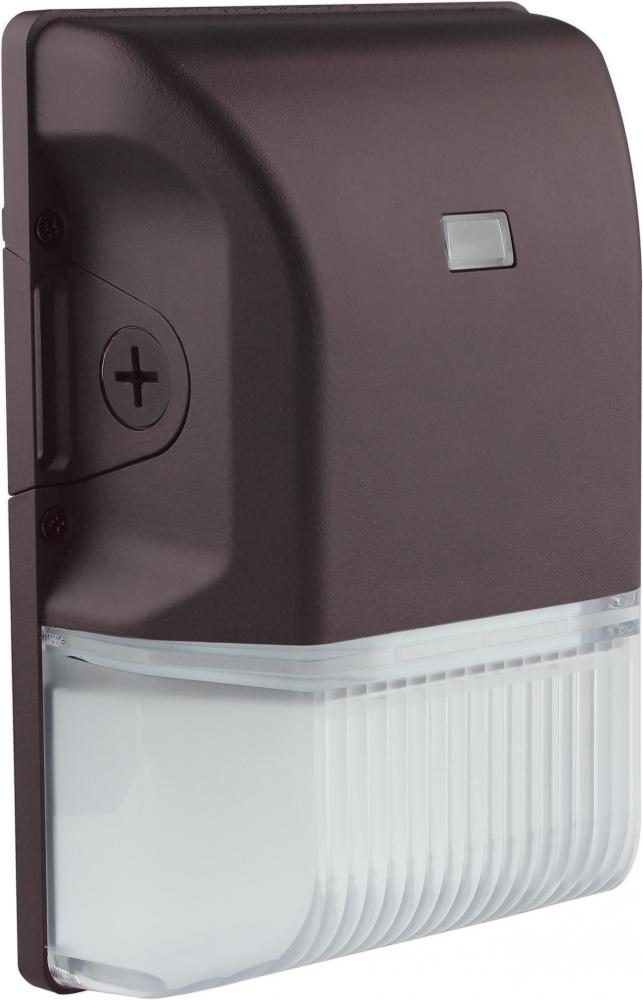

LED Small Wall PacK - 20W - 5000K - Bronze Finish - 100-277V (65/268)
LED Small Wall Pack; 20W; 5000K; Bronze Finish; 100-277V
Product Specification
Item #
65/268
Dimensions
Height: 8.59"
Width: 5.81"
Additional product details
Category
Exterior
, Sconces
Subcategory
Wall Lights
, Outdoor Wall Lights
Finish
Bronze
Style
Traditional
Option
LED
, Prop 65
Category
Wall Pack
Sub Category
Mini
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Natural Light
Dimmable
Non-Dimmable
Each Height
8.9
Each Length
6.1
Each Width
3.5
Lumens
2761L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.200-0.072A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
100
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
China
CRI
80+
Each Cube
0.11
Each Quantity
1
Efficacy
138.05 LPW
FCC Compliant
Yes
Feature 1
Maintenance free - no bulb to change
Feature 2
Die-cast Aluminum Body
Feature 3
IP65, Wet rated for outdoor use
Feature 4
Built-in Photocell
Feature 5
UV Stabilized Powder Coated Finish
Finish Family
Bronze
Incandescent Equivalent
100W-150W
Indoor Outdoor
Outdoor
IP Rating
IP65
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
The NUVO 65-268 LED 20-watt Small Wall pack offers natural light with a 100 degree beam spread in a bronze finish. This premium fixture features a photocell sensor and is suitable for use on commercial buildings for exterior lighting. Maintenance free and
Material
Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Color Box
Photocell
Has Photocell
Power Factor
0.92
Quantity In Pack
1
Rec Spacing Between Fixtures
6.56 ft. to 9.84 ft.
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
The NUVO LED 20-watt Small Wall pack offers natural light with a 100 degree beam spread in a bronze finish. This premium fixture features a photocell sensor and is suitable for use on commercial buildings for exterior lighting. Maintenance free and long-la
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
LED SMALL WALL PACK W/PHOTOCEL
Temperature (CCT)
5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
No
Weight Lb.
1.98
