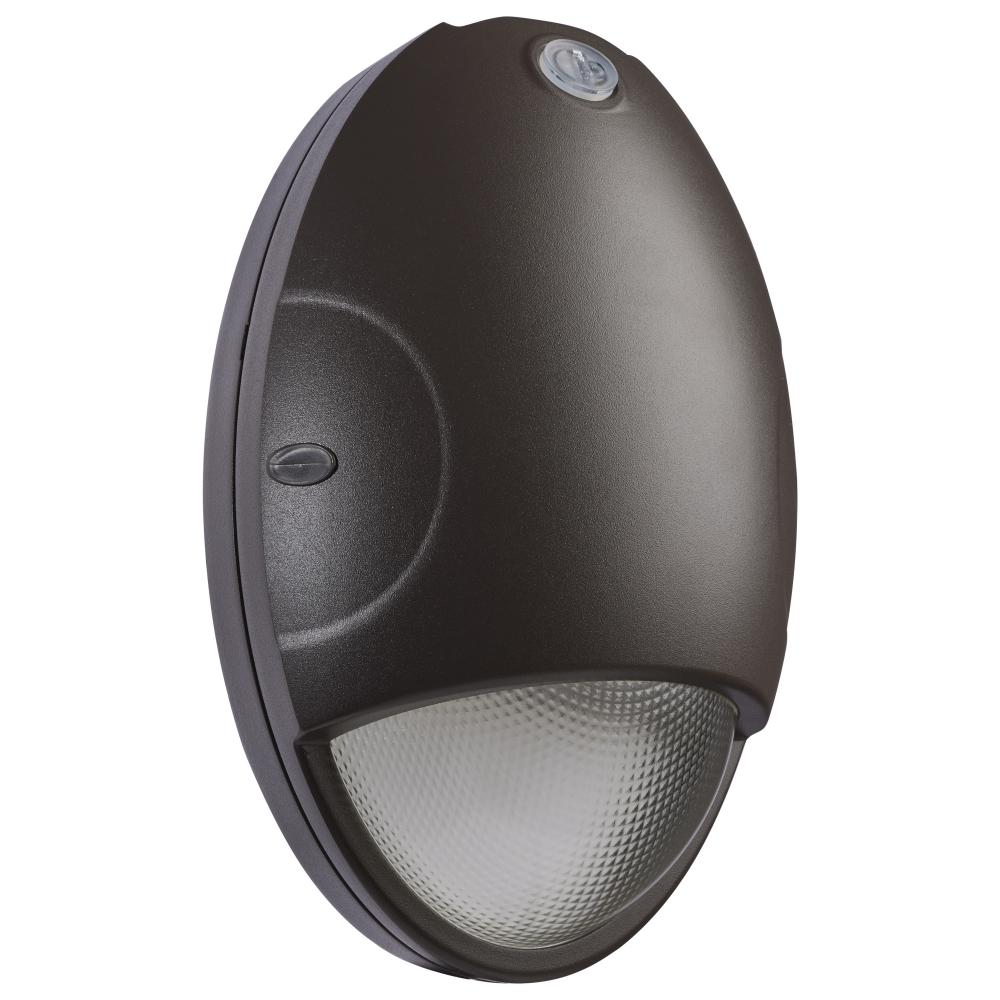

Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish (65/880)
Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish
Product Specification
Item #
65/880
Dimensions
Height: 10.47"
Width: 6.54"
Additional product details
Category
Utility
Subcategory
Emergency Lights
Option
LED
, Prop 65
Category
Wall Pack
Sub Category
Emergency Lighting
Style
Utility
Additional Info
Battery Mode: 5 Watts, 90 Minute Run Time
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Neutral White to Natural Light
Diameter
6.54
Dimmable
Yes-Dimmable
Each Height
10.83
Each Length
6.77
Each Width
4.06
Lumens
1740L-1814L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.125-0.054A
ANSI Base
Integrated
Battery Chemistry
Lithium-ion (Li-ion)
Beam Angle
100
B_U_G_Rating
B1-U3-G1
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80+
Dimmable Function
0-10V Dimming
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
0.1723
Each Quantity
1
Efficacy
116.00/118.47/120.93 LPW
FCC Compliant
Yes
Feature 1
3500K/4000K/5000K CCT Selectable
Feature 2
Integrated EM Backup Test Indicator Button
Feature 3
Integrated by-passable photocell
Feature 4
Wet Location
Feature 5
IK08
Feature 6
DLC Premium
Feature 7
Bronze Finish
Feature 8
H: 10.47 inches X W: 6.54 inches X D: 3.78 inches
Finish Family
Bronze
Fixture shape
Oval
Flicker Free
No
Has Emergency Battery
Yes
HID Equiv
60W
Impact Rating (IK)
IK08
Incandescent Equivalent
75W
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Prismatic
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's state of the art Emergency Battery Backup Wall Pack is a compact and sleek lighting solution designed to keep your space safe and well-illuminated during emergencies. Equipped with an integrated EM backup test indicator button, this fixtur
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
0C (+32F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Color Box
Photocell
Has Photocell
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's state of the art Emergency Battery Backup Wall Pack is a compact and sleek lighting solution designed to keep your space safe and well-illuminated during emergencies. Equipped with an integrated EM backup test indicator button, this fixtur
Safety Listing
cULus - Certified
SDS class
LED_Fixture
Short Description
LED SMALL EM WALL PACK BRONZE
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
3.61
Finish
