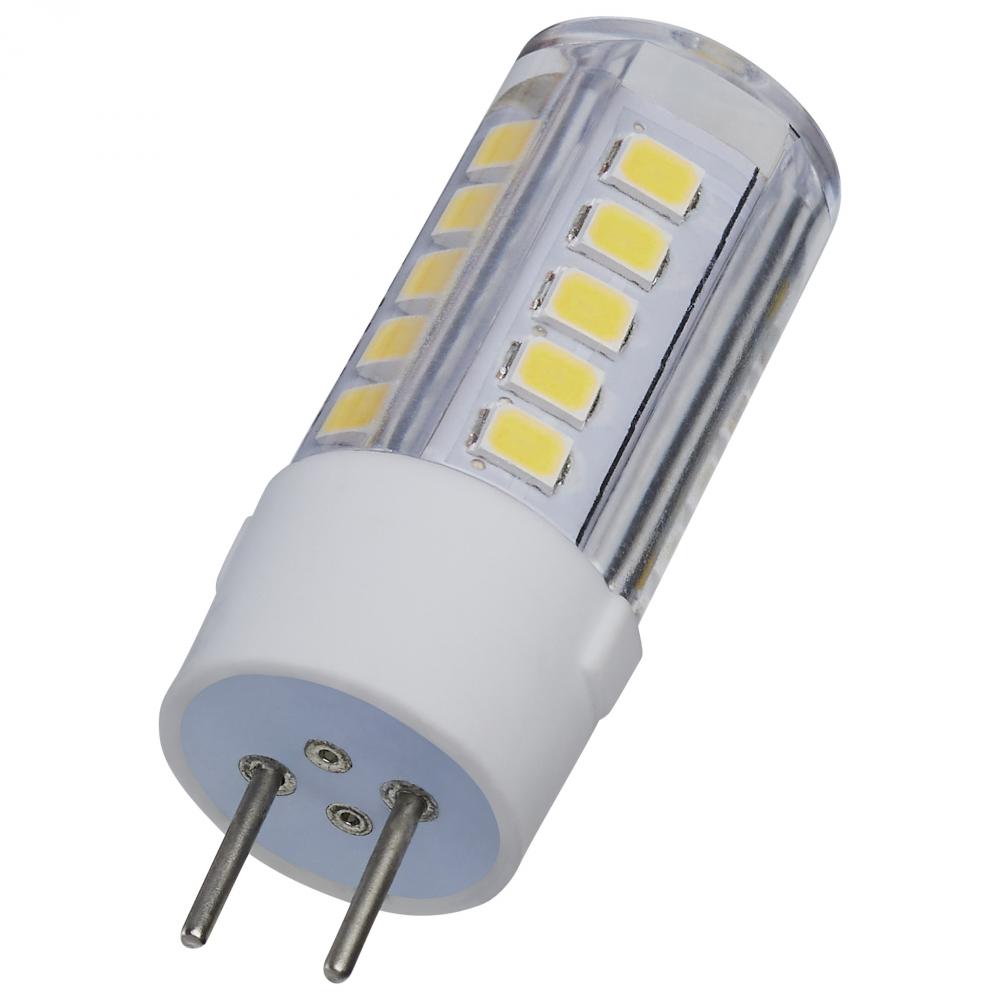

4.5 Watt Mini LED; GY6.35 Base; 5000K; Clear Finish; 12 Volt (S12125)
4.5 Watt Mini LED; GY6.35 Base; 5000K; Clear Finish; 12 Volt
Product Specification
Item #
S12125
Dimensions
Width: 0.73"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
Mini and Pin-Based LED
Volts
12V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
25000
Bulb Kelvin
5000K
Bulb Shape
T6
Diameter
0.73
EA Length
3.27
Harmonized Codes
8539.52.0020
Length
1.81
Lumens
430L
Shap Carton Width
0.73
Ship Carton Height
4.84
Ship Weight
0.06
Warranty
3 Year Limited - Mini LED Pin Base
Weight
0.02
Additional Info
Housing Material: Ceramic; Lens Material: Polycarbonate (PC)
Beam Spread
300
Bulb ANSI Base
GY6.35
Bulb Base
Bi Pin GY6.35
Bulb Finish
Clear
Candle Power
35
Carton Cubic Feet
0.0067
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 10 percent
Dimmable Function
Check the transformer/driver MFG for dimmer compatibility
Dimming Type
Phase cut
DLC Approved
No
Efficacy
95.56 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Low 12-volt Operation
Feature 2
300 degree Omni-Directional Light
Feature 3
5000K CCT
Feature 4
Damp location rated
Feature 5
T6, Bi-Pin GY6.35 Base
Feature 6
Dimmable
Feature 7
25,000 Life Hours
Housing Color
White
Incandescent Equivalent
40W
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Filament
LED
Location Rating
Damp
Long Description
Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO NUVO's S12125 4.5-watt, GY6.35-base, Halogen replacement lamp. Engineered for low 12-volt operation and featuring 300-degree omni-directional lighting, th
Material
Ceramic / Polycarbonate (PC)
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Carded
Power Factor
0.7
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO NUVO's G4 and GY6.35 Halogen replacement lamps. Available in an array of shapes, bases, and finishes, these lamps are equipped with LED technology, ensuri
SDS class
LED_Lamp
Short Description
4.5W/LED/GY6.35/CL/850/12V/1CD
Style
Utility
Surge Protection
Built-in surge protection - 1.5KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
70%
Wattage Selectable
No
Watts
4.5W
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
7
90
/
/ 1
($7.90 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 2870 items available.
