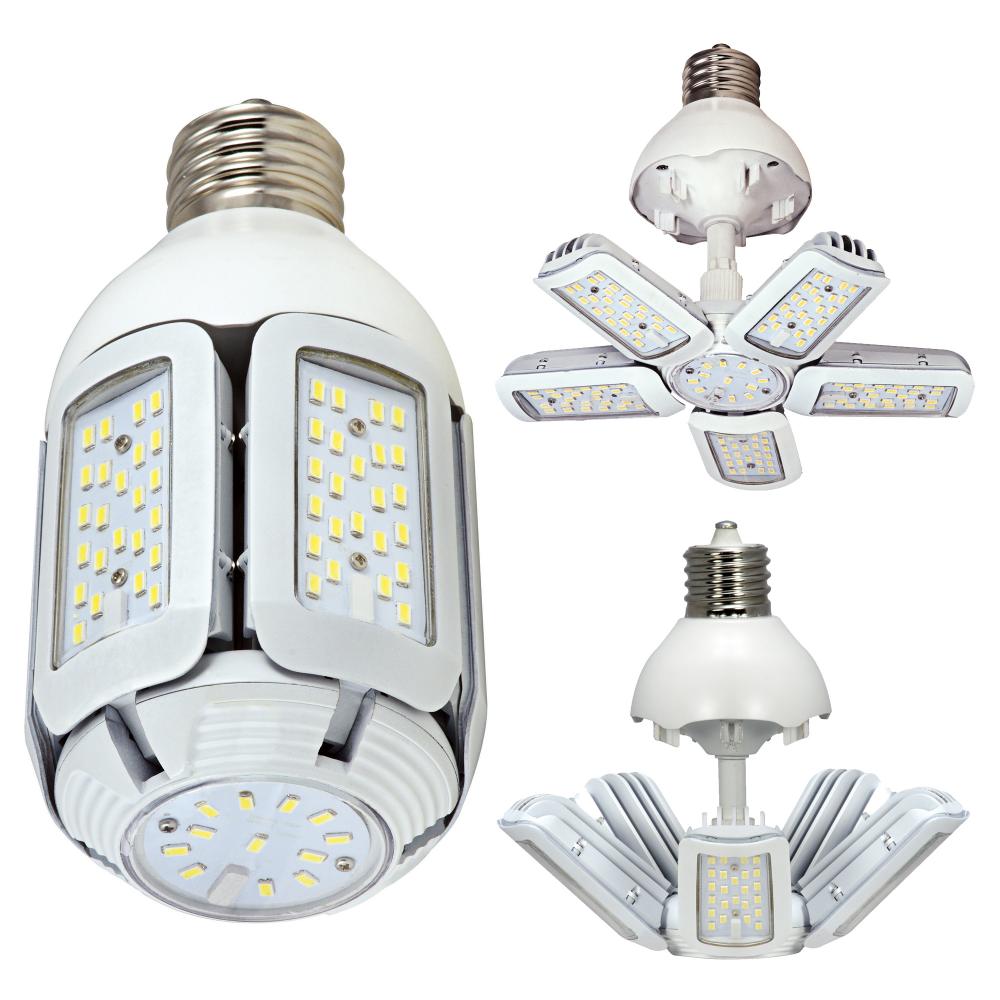

75 Watt - LED HID Replacement; 2700K; Mogul Extended base; Adjustable beam angle; 100-277 Volt (S29709)
75 Watt - LED HID Replacement; 2700K; Mogul Extended base; Adjustable beam angle; 100-277 Volt
Product Specification
Item #
S29709
Dimensions
Width: 4.08"
Additional product details
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
2700K
Bulb Shape
Corncob
Diameter
4.08
EA Length
5.39
Length
8.460000000000001
Lumens
9000L
Shap Carton Width
5.39
Ship Carton Height
9.84
Ship Weight
3.11
Warranty
5 Year Limited - Hi-Pro
Weight
2.4
Additional Info
Width 360 deg 4.2 in.; Width 270 deg 9.3 in.; Width 180 deg 10.9 in.
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
360
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
Clear
Burning Position
Universal
Carton Cubic Feet
0.1654
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
120.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Flourescent Equivalent
105W
HID Equivalent
400W
Housing Color
White
Incandescent Equivalent
750W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IP Rating
IP65
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Clear
Location Rating
Wet
Minimum Compartment Size
Length: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
SDS class
LED_Lamp
Short Description
75W/LED/HID/MB/2700K/100-277V
Surge Protection
Built-in surge protection - 3KV
Technology
LED
Thermal Management
Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
75W
