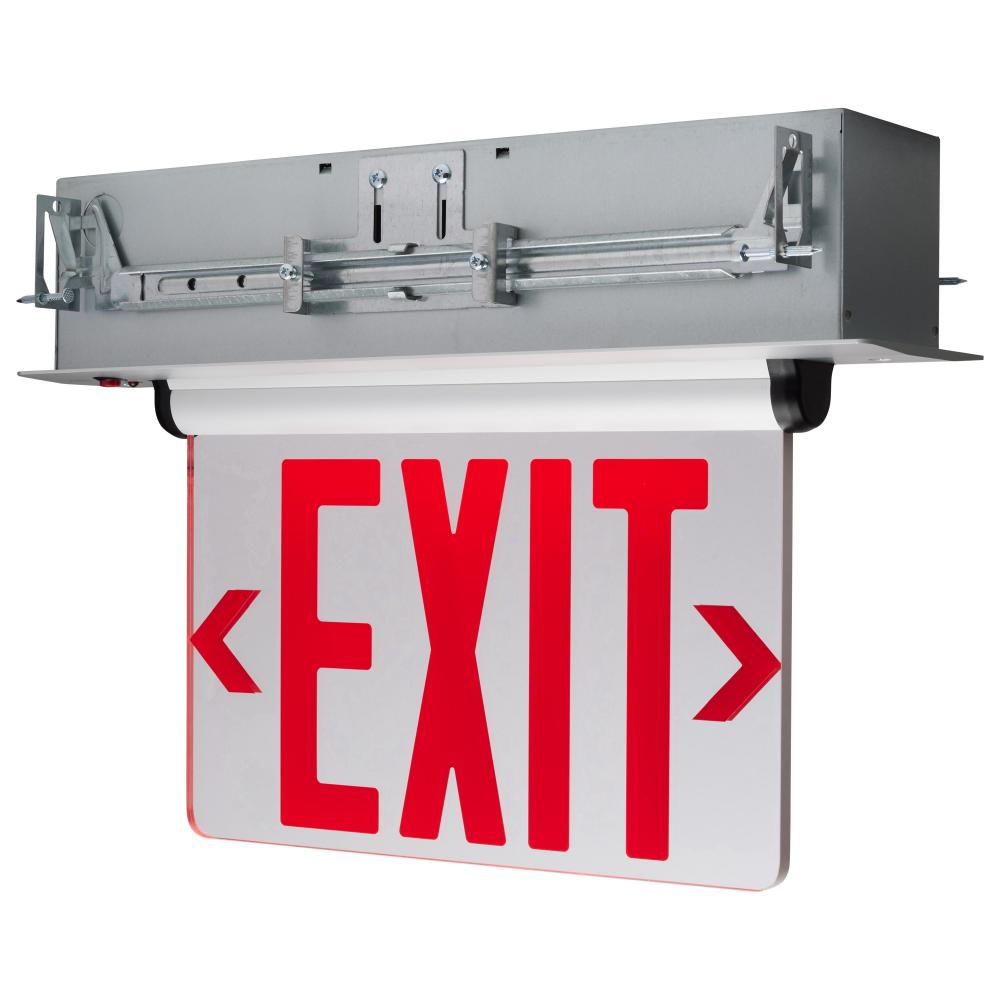

Red (Mirror) Edge Lit LED Exit Sign; 3.14 Watt; Dual Face; 120/277 Volts; Silver Finish (67/117)
Red (Mirror) Edge Lit LED Exit Sign; 3.14 Watt; Dual Face; 120/277 Volts; Silver Finish
Product Specification
Item #
67/117
Dimensions
Height: 11.00"
Width: 15.75"
Additional product details
Category
Utility
Subcategory
Exit Signs
Option
LED
, Prop 65
Category
Lighting Products
Sub Category
Exit Sign
Style
Utility
Additional Info
Input Wattage: 3.14W; Output Wattage: 0.5W; Energy Used in Maintenance Mode: 3.14W
Bulb Shape
Integrated LED
Bulb Type
LED
Dimmable
Non-Dimmable
Harmonized Codes
9405.61.6000
Ship Carton Height
8.66
Ship Carton Length
16.34
Ship Carton Width
4.72
Warranty
2 Year Limited
Amps
0.026/0.011A
ANSI Base
Integrated
BAA Compliant
No
Battery Chemistry
Ni-Cad
CA Prop-65
Lead
Carton Cubic Feet
0.3865
Cartons Per Unit
1
CCT Selectable
No
CEC
T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
China
Depth
4
FCC Compliant
Yes
Feature 1
Red Lettering
Feature 2
Dual Face, Mirrored
Feature 3
Configurable Arrows
Feature 4
Recessed Ceiling or Wall Mount
Feature 5
Damp Location
Feature 6
Sleek Brushed Aluminum Housing
Feature 7
90 Minute Backup Run Time
Feature 8
Test Switch and AC Supply Indicator
Feature 9
2 Year Warranty
Finish Family
Silver
Has Emergency Battery
Yes
Includes
Mounting hardware and accessories
Indoor Outdoor
Indoor
JA8 Compliant
No
Lens Finish
Mirrored
Lens Material
Acrylic
Long Description
SATCO|NUVO's LED Recessed Mount Edge-Lit Exit Sign 67-117 - the perfect solution for your commercial, hospitality and multi-family spaces. This sign has red lettering in a dual face mirrored design with a sleek, brushed aluminum housing and offers conf
Material
Aluminum
Mounting Procedure
Recessed Ceiling/Wall
Operating Frequency
60Hz
Operating Temprature
+10C (+50F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED Recessed Mount Edge-Lit Exit Signs - the perfect solution for your commercial, hospitality and multi-family spaces. Available in four different configurations, these signs are designed with a sleek, brushed aluminum housing and offer c
Safety Listing
ULus - Certified;ULus - Listed
Short Description
REC EL EXIT SIGN - DF RD MIR
Specification Notes
Aluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Lumens/Illuminance: 61 cd/m2 average; Letter Height: 6 in.; Letter Stroke: 0.75 in.
Title 20 Compliant
Yes
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
5.2
