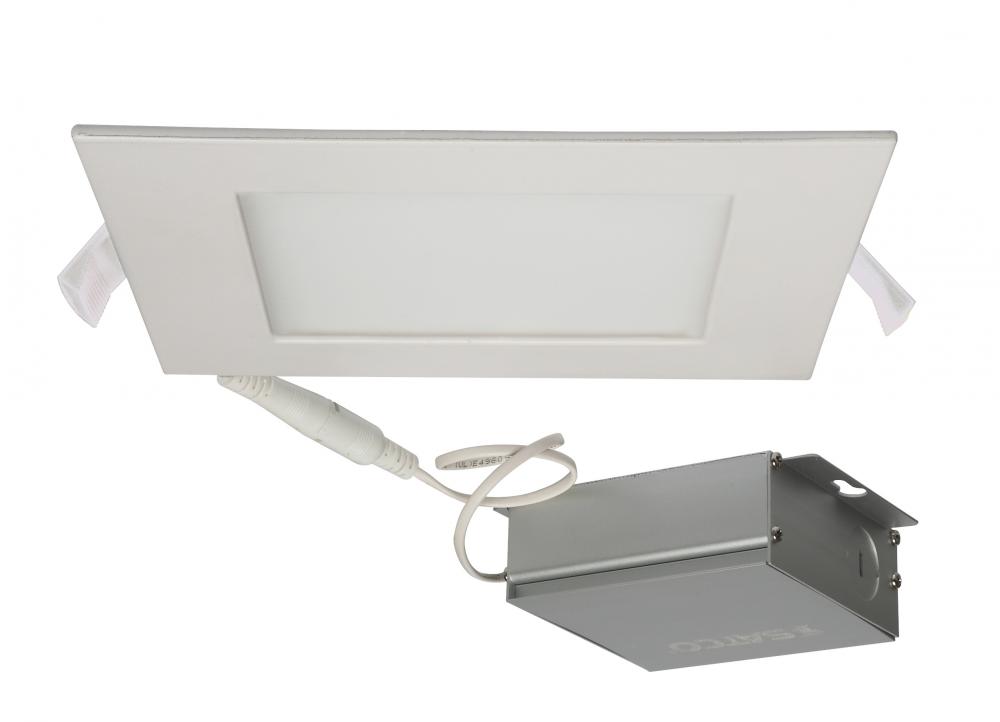

12 watt LED Direct Wire Downlight; Edge-lit; 6 inch; 3000K; 120 volt; Dimmable; Square; Remote (S11612)
12 watt LED Direct Wire Downlight; Edge-lit; 6 inch; 3000K; 120 volt; Dimmable; Square; Remote Driver
Product Specification
Item #
S11612
Dimensions
Height: 0.94"
Width: 6.75"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Additional Info
Integrated j-box for direct wire installation
Bulb Hours
50000
Bulb Kelvin
Warm White
Bulb Shape
Integrated LED
Bulb Type
LED
Dimmable
Yes-Dimmable
Harmonized Codes
9405.11.8010
Length
6.75
Lumens
820L
Ship Carton Height
7.13
Ship Carton Length
8.74
Ship Carton Width
2.13
Warranty
5-Years
Air Tight
Yes
Amps
0.100A
ANSI Base
Integrated
BAA Compliant
No
Beam Spread
108
CA Prop-65
Lead
Carton Cubic Feet
0.07679999999999999
Cartons Per Unit
1
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
6.1875 in. Cutout
Clearance Height
2
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy
68.33 LPW
FCC Compliant
Yes
Finish Family
White
Fixture shape
Square
Has Driver
Yes
IC Rated
Yes
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
Installation Notes
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Poly methyl methacrylate (PMMA)
Material
Aluminum
Max Drywall Thickness
5/8 in.
Mounting Procedure
Ceiling
Operating Temprature
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.98
Quantity In Pack
1
Rec Spacing Between Fixtures
4 ft. to 6 ft.
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
12WLED/DW/EL/6/930/SQ/RD
Sloped Ceiling Compatible
No
Temperature (CCT)
3000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
1.24
