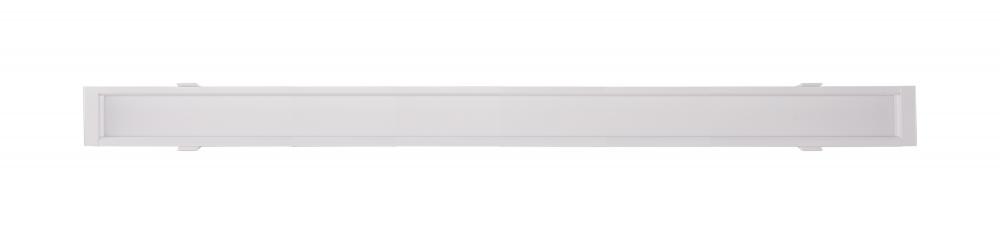

40 Watt LED Direct Wire Linear Downlight; 48 in.; Adjustable CCT; 120 Volt (S11724)
40 Watt LED Direct Wire Linear Downlight; 48 in.; Adjustable CCT; 120 Volt
Product Specification
Item #
S11724
Dimensions
Height: 3.15"
Width: 3.74"
Additional product details
Attribute
In Stock
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Style
Utility
Bulb Hours
40000
Bulb Kelvin
Warm to Cool White
Bulb Shape
Integrated LED
Bulb Type
LED
Dimmable
Yes-Dimmable
Harmonized Codes
9405.11.8010
Length
48
Lumens
3000L
Ship Carton Height
3.15
Ship Carton Length
48
Ship Carton Width
3.74
Warranty
5-Years
Air Tight
Yes
Amps
0.333A
ANSI Base
Integrated
BAA Compliant
No
Beam Spread
110
CA Prop-65
Lead
Carton Cubic Feet
0.3272
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
46.65 L x 3.15 W in. Cutout
Clearance Height
4.72
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable
Efficacy
75.00 LPW
FCC Compliant
Yes
Feature 1
5 sizes with 3 CCT selections
Feature 2
Title 24 compliant
Feature 3
Damp location rated
Feature 4
Air tight
Feature 5
40,000 average rated hours
Feature 6
40,000 average rated hours
Finish Family
White
Fixture shape
Linear
IC Rated
Yes
Incandescent Equivalent
200W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Material
Polycarbonate (PC)
Long Description
Satco's S11724 40 watt, 48 inch LED recessed downlight is a sleek solution for advanced architectural installations. This air tight fixture offers a low-profile aesthetic with even light distribution and CCT selectability for design versatility. This e
Material
Aluminum / Plastic
Max Drywall Thickness
1-1/8 in.
Minimum Compartment Size
Length: 47.2 in. Width: 7.87 in. Height: 4.72 in.
Mounting Procedure
Ceiling/Wall
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's LED Linear Recessed/Direct Wire feature a beveled trim for a sleek, recessed appearance and offer a low-profile aesthetic with even light distribution and design versatility. The convenient direct wire junction box and spring-clip mounting make
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
40WLED/DW/LINEAR/48"/ADJ-CCT
Sloped Ceiling Compatible
Yes
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
2.84
